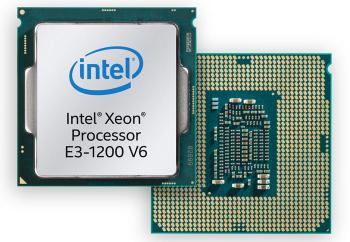

Intel Xeon processor E3-1200 v6 product family becomes available

by Mark Tyson on 29 March 2017, 10:02

Tags: Intel (NASDAQ:INTC)

Quick Link: HEXUS.net/qadfsi

Add to My Vault: x

Intel has announced the availability of its Xeon processor E3-1200 v6 product family. A total of eight Kaby Lake Xeons have been made available and Intel asserts that they deliver "key improvements in processor speed, enhanced memory capabilities, hardware-enhanced security and reliability features with support for the latest Intel graphics". Alongside the usual targeted applications of entry-level workstations used in SMBs for design, analytics, and rendering, Intel adds buzz to this processor release by describing it as ready for professional virtual reality and 4K video.

Making the case for upgrading to the new Xeon E3-1200 v6 product family, Intel has a number of comparisons to make with previous Xeons which are just a few years old. Headline computing performance will be up to 56 per cent improved compared to an E3-1200 v6 processor, it says.

In another key metric, where SKUs have built-in graphics chips, the Intel HD Graphics P630 in the new Xeons can provide up to 3x graphics performance of an Intel Xeon E3-1280 v2. Add to this HVEC 10-bit hardware video acceleration and 4K video de/coding. With the P630 "designers may no longer need a discrete graphics card for some of the most commonly-used workloads," reckons Intel. Intel has made a simple table to make clear the Xeon with integrated graphics benefits, as below.

Another big reason for going Xeon is the certified and optimised performance in popular workstation applications such as AutoCAD, Maya, Micro-Station, Solidworks, Photoshop, and many others. Intel goes on to trumpet Xeon v6 virtualisation technology, vPro technology, hardware enhanced security like Intel Software Guard Extensions (Intel SGX), and Optane compatibility, and ECC memory support as reasons to opt for the platform.

Looking more closely at the Intel Xeon processor E3-1200 v6 product family product matrix, we can see that they are all quad-core parts; six of them are in 4C/8T configuration, and the two cheapest models are 4C/4T.

SKU

Cores/Threads

Base freq

Turbo

HD Graphics P630

Price

Xeon E3-1280 v6

4/8

3.9GHz

4.2GHz

-

$612

Xeon E3-1275 v6

4/8

3.8GHz

4.2GHz

Yes

$339

Xeon E3-1270 v6

4/8

3.8GHz

4.2GHz

-

$328

Xeon E3-1245 v6

4/8

3.7GHz

4.1GHz

Yes

$284

Xeon E3-1240 v6

4/8

3.7GHz

4.1GHz

-

$272

Xeon E3-1230 v6

4/8

3.5GHz

3.9GHz

-

$250

Xeon E3-1225 v6

4/4

3.3GHz

3.7GHz

Yes

$213

Xeon E3-1220 v6

4/4

3.0GHz

3.5GHz

-

$193



To make use of one of the new Kaby Lake Xeons you will need to have an Intel C230 series chipset motherboard, specifically either the Intel C232 or C236 chipsets. At least this makes them viable as upgrade options for those who already bought into C230 chipset socket 1151 boards,with probably only a BIOS update required for support. Intel says the Xeon processor E3-1200 v6 product family is available immediately.
