NVIDIA strikes back: targets Intel Atom with Tegra SoC

by Parm Mann on 2 June 2008, 14:35

Tags: NVIDIA (NASDAQ:NVDA)

Quick Link: HEXUS.net/qaniw

Add to My Vault: x

At a COMPUTEX press conference earlier today, NVIDIA's Michael Rayfield was on hand to unveil the manufacturer's Tegra family of processors.

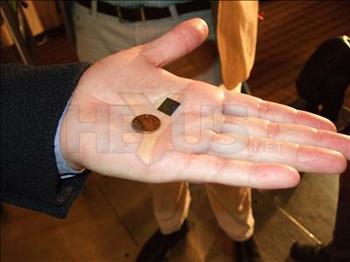

Dubbed a computer-on-a-chip, Tegra features an ARM11 processor, a HD video processor and an ultra low-power GeForce GPU. The chip measures one tenth the size of Intel's Menlow platform, and NVIDIA had no shortage of various bold claims.

Tegra will provide a whopping battery life of 26 hours when playing 720p video, compared to 1 hour when using Intel's Atom chip, says NVIDIA.

The Tegra series, which builds upon NVIDIA's early '08 processor, the APX 2500, will launch in two SKUs; the Tegra 650 and Tegra 600.

Both chips feature an ARM11 processor, clocked at 800MHz and 700MHz, respectively. Whilst both chips will playback 720p without kicking up a fuss, the Tegra 650 will also manage 1080p H.264 footage. Perhaps even more impressive, is the fact that NVIDIA showed a Tegra-based MID playing back 720p video, whilst consuming under 1Watt of power.

So then, when comparing to Intel's Atom, NVIDIA tells us that Tegra's battery life is better, it uses less power, it's much smaller and it'll playback HD video without problem. An all-round winner, right?

Well, maybe not. Tegra might seem incredible at a first glance, and the live product demonstrations on show were impressive - the 720p playback really was flawless. Nonetheless, NVIDIA's marketing Tegra as an Atom-beater. We, however, feel that Atom isn't the direct competitor. Atom can be found in mobile devices such as MIDs and UMPCs, but it lives in laptops too. Tegra, it appears, is limited to just mobile devices - for now, at least.

A better resemblance, in fact, might be made to older chips such as AMD's all-in-one media processor, the Imageon, or indeed Intel's 2007 system-on-a-chip (SoC), the CE 2110.

The computer-on-a-chip isn't an entirely new formula, and although NVIDIA's HD-ability benefits from an onboard HD processor, the ARM11 CPU could be the weak link. ARM11, a 32-bit RISC processor, is widely used in mobile devices, but suffers from being incompatible with x86 software. Intel's x86 Atom, doesn't face such an issue and can run PC software without the need to recompile code.

Despite our concerns, we're quietly excited about Tegra. NVIDIA states that the design has been built from the ground up, as opposed to taking existing architecture and shrinking it down. It claims, therefore, that Tegra will improve in performance year after year, whilst retaining its tiny power envelope.

Though Tegra prices haven't yet been announced, NVIDIA states that we'll be seeing Tegra-based devices from various partners later this year. We'll be keeping a close eye on those, but in the meantime, here's the complete Tegra specification:

  NVIDIA Tegra 650 NVIDIA Tegra 600
Processor and Memory Subsystem ARM11 MPCore @ 800Mhz
16/32-bit LP-DDR
NAND Flash support
ARM11 MPCore @ 700Mhz
16/32-bit LP-DDR
NAND Flash support
HD AVP (High Definition Audio Video Processor) 1080p H.264 decode
720p H.264 encode
Supports multi-standard audio formats, including AAC, AMR, WMA and MP3
JPEG encode and decode acceleration
720p H.264 and VC-1/WMV9 decode
720p H.264 encode
Supports multi-standard audio formats, including AAC, AMR, WMA and MP3
JPEG encode and decode acceleration
ULP (Ultra Low Power) GeForce OpenGL ES 2.0
Programmable pixel shader
Programmable vertex and lighting
Advanced 2D/3D graphics
OpenGL ES 2.0
Programmable pixel shader
Programmable vertex and lighting
Advanced 2D/3D graphics
NVIDIA nPower Technology

Low-power design delivers over 130 hours audio and 30 hours HD video playback
Optimises system power use

Low-power design delivers over 100 hours audio and 10 hours HD video playback
Optimises system power use

Imaging Up to 12 megapixel camera sensor support
Integrated ISP
Advanced imaging features
Up to 12 megapixel camera sensor support
Integrated ISP
Advanced imaging features
Display Subsystem True dual-dispolay support
Maximum display resolutions supports:
- 1080p (1920x1080) HDMI 1.3
- WSXGA+ (1680x1050) LCD
- SXGA (1280x1024) CRT
- NTSC/PAL TV output
True dual-dispolay support
Maximum display resolutions supports:
- 720p (1280x720) HDMI 1.3
- SXGA (1280x1024) LCD
- SXGA (1280x1024) CRT
- NTSC/PAL TV output



HEXUS Forums :: 10 Comments

Login with Forum Account

Don't have an account? Register today!
Why so downbeat on the x86 comaptibility. OK so it won't run Winbloat but there are plenty of Linux apps for ARM cpus. I run a Linkstation NAS box which is ARM Linux and there's plenty out there. Even full distros…. sure it could make Netbook PCs….. might be rather good.. if prices are good!
one thing i noticed is that they claim it will be 10x faster than atom but they use 2 different incompatable Architectures. is there some sort of mythical benchmark that i havent heard about that runs on both x86 and risc and gives a reliable metric?
How ironic, you could build a very compelling EEE-style Linux netbook around this device if only Nvidia's general attitude to Linux wasn't “I fart in your general direction”. Email NVidia with a request for the register-level datasheets, and see how far you get. Talk about shooting themselves in the foot….
alsenior
one thing i noticed is that they claim it will be 10x faster than atom but they use 2 different incompatible Architectures. is there some sort of mythical benchmark that i haven't heard about that runs on both x86 and risc and gives a reliable metric?
Thats easy, just use a benchmark that comes with source code, and complie it for each archetecture. In the old days before x86 became dominant, benchmarks like Drystone and Wheatstone where commonly used in this way.

So to benchmark H264 decoding, just take the source code for the reference implementation of the decoder, hack the code so that it decodes and displays frames as fast as possible rather than running at a fixed frame rate, compile for each architecture & measure the frame rate. If you are concerned that the decoder might take shortcuts with quality then you save the bitmap of each frame and check they are all correct.

Any benchmark with the source code available such as POVRay, Prime95 and games like Quake can be run in this way, and people generally trust the results. The main problem is that to be truly trusted, the source code of the libraries needs to be available as well, and that tends to be a bit of a sore point when it comes to nVidia graphics drivers.
alsenior
one thing i noticed is that they claim it will be 10x faster than atom but they use 2 different incompatable Architectures. is there some sort of mythical benchmark that i havent heard about that runs on both x86 and risc and gives a reliable metric?

Yes, use Linux, and run `time jobname' on both archs. And assuming nV starts taking Linux seriously, this would make for one hell of an ultra-portable, maybe even revolutionary change in industry accepted architecture.
