Jetway N2VIEW MagicTwin
| Jetway N2VIEW | |
| CPU Support | All Socket A processors. Support for all 266/333/400MHz Athlon, Athlon XP and Duron processors, including Barton and all other cache level variants. |
| Northbridge | NVIDIA nForce2 IGP-128/333 |
| Memory Support | 3 slots, up to DDR333, 3GB max, dual-channel |
| AGP | 8X |
| Southbridge | NVIDIA MCP |
| Audio | Realtek ALC655 from MCP feed |
| Audio Connectivity | 3 port backplane speaker/mic |
| PCI | 5 x 32-bit 33MHz PCI 2.1 slots |
| IDE | 2 ATA133 compliant ports from MCP |
| IDE RAID | None |
| SATA | None |
| SATA RAID | None |
| Networking | NVIDIA nForce2 Fast Ethernet controller, 10/100Mbit |
| USB | MCP, 4 x backplane USB2.0, 2 x I/O USB2.0 (unsupplied) |
| FireWire | None |

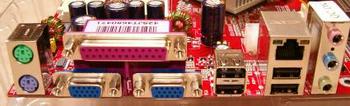

| Other I/O | Dual use PS/2, Parallel |
Analysing the spec sheet tells you everything you need to know. It's nForce2 without the MCP-T bridge, instead using the cheaper, less feature packed MCP version. That means no FireWire or Soundstorm audio, but you still get a pair of ATA133 ports, Ethernet networking and audio pushed through Realtek's ubiquitous ALC655 CODEC.
No SATA, unlike the PT800TWIN, means your disk connectivity options are slightly limited out of the box, but it's forgiveable. AGP makes an appearance for overriding the onboard VGA core, you get 5 PCI slots for expansion and 4 USB2.0 ports.
Like the PT800TWIN, the N2VIEW's features aren't its strongest point.
