Sapphire PI-AM2RS690MHD - BIOS
Feature | Adjustments |
---|---|
HT Reference Clock (CPU-SPP) | N/A (No option in BIOS) |
CPU FID | x5-CPU max. FID (x1 increments) |
PEG Clock | N/A (No option in BIOS) |
HT Multiplier (CPU-SPP) | 1-5x (x1 increments) |
Memory Clock | 400/533/667/800MHz |
Graphics Clock (Memory) | 200/250/266/300/333/350MHz (Graphics Clock mode must be set to Async) |
CPU Core voltage | 1.000-CPU MAX (0.025v increments) |
Memory VDIMM | 1.800-2.100v (0.1v increments) |
NB Voltage | 1.20-1.35v (0.05v increments) |
Even compared to the M2A-VM HMDI, Sapphires overclocking options for the PI-AM2RS690MHD are somewhat lacking.
The complete omission of HT clock speed adjustments mean that unless you have a multiplier unlocked CPU, such as the FX-62, there is no way of overclocking your CPU through the BIOS.

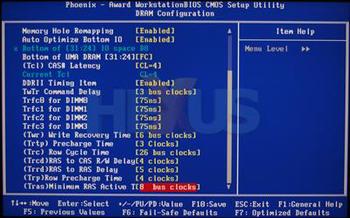

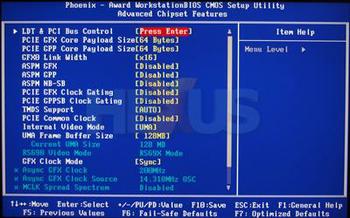

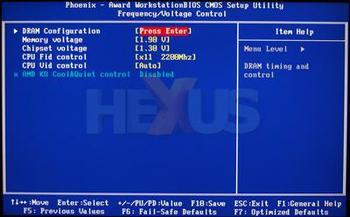

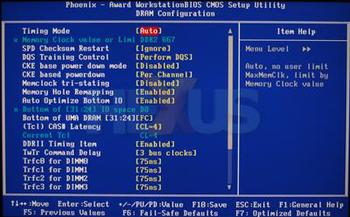

BIOS Images
Sapphire's BIOS implementation manages to be both lacking in areas we are interested in, such as the previously mentioned overclocking, and yet vastly over complicated at the same time.
Many of the options included are outright confusing and will just be left on auto.
