Port Forwarding

by Parm Mann on 20 October 2008, 00:00

Quick Link: HEXUS.net/qasa6

Add to My Vault: x

A live example

Seeing as at the time of writing, Battlefield 2 is a popular game, we'll stick with it for use as an example. Let's imagine we're running a server that we want our mates to be able to connect to over the Internet. Here's what EA say you need open:

Protocol
Port
UDP 27900
UDP/TCP 29900
TCP 80
TCP 4711
UDP 27901
UDP 1500-4999
UDP/TCP 1024-1124
UDP 29900
UDP/TCP 27900
UDP 16567
UDP 55123-55125

That's a hefty list. In a lot of cases you'll only need one port or one range forwarding, but just in case, let's look at a few of the methods you need to know.

Regardless of whether you're forwarding a range of ports or a single port, you need to know whether the protocol being used is TCP or UDP. First on our list is UDP port 27900. Unless you get clever and start reconfiguring servers, you'll want to forward from one port number to the same port number, like so:

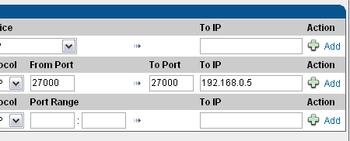

Then you'll have to set the IP address of the computer to forward to. This means, in general, that you'll have to set up the computer in question with a fixed IP, rather than have it obtain one automatically, something not covered in this article.

Click add, and BOOM, the port will be added to the forwarding list.
