GIGABYTE launches custom Radeon HD 4870 equipped with DisplayPort

by Parm Mann on 9 December 2008, 10:09

Tags: Radeon HD 4870 1024MB (Cat 9.3), Gigabyte (TPE:2376)

Quick Link: HEXUS.net/qaqfm

Add to My Vault: x

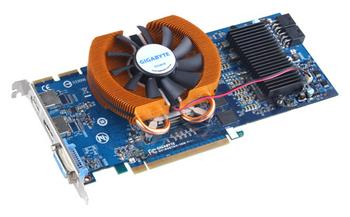

If you're looking for a Radeon HD 4870 graphics card that's a little sleeker than AMD's reference design, GIGABYTE's GV-R487D5-1GD could be just what you're after.

The recently launched graphics card is built on AMD's Radeon HD 4870 GPU but carries an in-house design that makes use of GIGABYTE's Ultra Durable 2 feature set - meaning high-quality power-efficient components - and throws in DVI, HDMI and DisplayPort connectivity.

In addition to the useful trio of connectivity options, there's 1GB of on-board GDDR5 memory and a custom heatsink and fan to help keep it all cool.

GIGABYTE has thus far failed to mention actual clock speeds, so we'll assume they're at AMD's reference levels - that's 750MHz and 1,800MHz for core and effective memory, respectively.

No word on pricing, either, but it shouldn't be long until this one reaches retail.

Official press release: GIGABYTE Presents DisplayPort Ready Radeon™ HD 4870 Graphics Card

HEXUS Forums :: 14 Comments

Login with Forum Account

Don't have an account? Register today!
Posted by Biscuit - Tue 09 Dec 2008 13:58
its always nice to see a little bit of innovation. GJ GB
Posted by format - Tue 09 Dec 2008 14:05
So if I were to have to a monitor and a GPU equipped with DisplayPort, what, if any, benefits would I see?
Posted by Biscuit - Tue 09 Dec 2008 14:30
Well the display port header is a lot smaller :D

I dont think there would be any noticable difference for normal resolutions butwhen you start cranking up above 1080p the bandwidth limitations of HDMI/DVI may start to become apparent.

Edit: that as just a guess i checked out wiki out of interest

wikipedia
Advantages over DVI

1. Based on micro-packet protocol.
* Allows easy expansion of the standard
* Allows multiple video streams over single physical connection (in a future version)
2. Designed to support internal chip-to-chip communication
* Can drive display panels directly, eliminating control circuits and allowing for cheaper and slimmer displays
* Aimed to replace internal LVDS links in notebook panels with a unified link interface
3. Supports both RGB and YCbCr encoding formats
4. Auxiliary channel can be used for touch-panel data, USB links, camera, microphone, etc.
5. Fewer lanes with embedded clock reduce RFI.
6. Slimmer cables and a much smaller connector that doesn't require thumbscrews. Connector pins don't run the risk of bending if improperly handled.
7. The DisplayPort connector is easier to connect when guided only by touch.

Advantages compared to HDMI

1. DisplayPort does not require licensing or royalty payments.

Disadvantages compared to HDMI

1. No xvYCC color space support.
2. No Dolby TrueHD or DTS-HD Master Audio bitstream support.
3. No support for Consumer Electronics Control signals.
Posted by baius - Tue 16 Dec 2008 15:43
Biscuit
Edit: that as just a guess i checked out wiki out of interest
2. No Dolby TrueHD or DTS-HD Master Audio bitstream support.
3. No support for Consumer Electronics Control signals.
Didn't know either of those things about DP. Each of those could isolate certain users, meaning HDMI sticks around for a bit longer. (Having said that, a later rev'n of DP could add both of those features.)
Posted by Perfectionist - Tue 16 Dec 2008 15:59
eh, when they bring the same to 4870x2 I'll care - I was surprised that it didn't have HDMI when I first saw it.
