How to use Windows 7 to diagnose system sleep problems

by Parm Mann on 22 May 2009, 13:05

Tags: Windows Vista, Microsoft (NASDAQ:MSFT)

Quick Link: HEXUS.net/qasdx

Add to My Vault: x

Sleep mode, or stand by as it's sometimes known, is a great idea - in theory. Put simply, it refers to a low-power state in which PCs can turn off non-essential components and help save power when a system isn't in use.

If you're not too familiar with it on the desktop, you're likely to have seen sleep mode used on notebooks - as many are pre-configured to enter into sleep when the lid is closed to help preserve battery life. Mighty useful, and a sleeping system can be woken up quickly - meaning an almost-instant return to the operating system.

Trouble is, sleep mode doesn't always seem to work - particularly on custom-built PCs using varying components and drivers. Thinking back, I can't seem to recall ever building a PC that successfully slept when asked to do so - they've always had a tendency not to want to sleep at all, or a strong desire to wake up on their own accord.

With a multitude of possible causes, I gave up a while back, but the need to save power is ever-more apparent and there's a tool built into Microsoft's Windows 7 operating system to help diagnose sleep problems. Here's how to give it a go:

1) Open Command Prompt as an administrator. This can be done by locating Command Prompt in the Start Menu (under All Programmes, Accessories) and launching it by right clicking and choosing "Run as administrator".

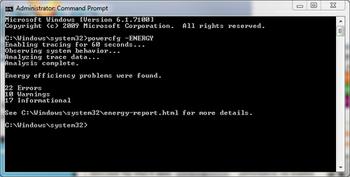

2) Once in Command Prompt as the administrator, type "powercfg -ENERGY" without the quotations, of course. Windows 7 will then analyse the system and produce a report detailing devices and drivers that may be preventing sleep from functioning properly.

The report (saved as a web page at C:\Windows\system32\energy-report.html) will also detail the system's supported sleep states - that's S1, S2, S3 or S4 - as well as highlight other potential energy-saving settings.

We've tried it on Windows 7 RC, and we've found the report to be useful. It's worth noting, also, that the powercfg command is present in older versions of Windows, but the ability to generate an energy report is - as far as we're aware - new to Windows 7.

Does your system sleep as it should, or will you be trying to solve your system's insomnia with the Windows 7 energy report? Share your thoughts on sleep mode in the HEXUS.community forums.



HEXUS Forums :: 10 Comments

Login with Forum Account

Don't have an account? Register today!
Windows 7 Beta never hibernated properly for me, but once i get RC up and running I'll certainly give this a shot. Seems like a useful tool, but i couldnt find the equivalent parameter to -energy on the vista version
The computer goes to sleep fine for me.. just sometimes it never wakes up..
The first time my PC went to Sleep state was not intenional as i had left the PC on for a good while doing nothing came back to it and found it “off”. Was pleasently suprised to see it wake up and carry ok after fearing that it wouldn't.

The second time however was quite worrying as i again left he my PC on and went out to do some shopping, I came back to find it power cycling every couple of seconds and this time it would not wake up. I dont know for how long it had been doing that but that isn't the best thing for your hardware to be doing (especially as i have a certain large HDD that is in the category that is prone to random failure usually brought on by power cycling!!). Having manged to stop it doing so when i next rebooted the bios had been reset.

I shall run the report and see what it says.
Mine sleeps, wakes up but then I cant use the keyboard to log in :(
I dont usually do it as i usually switch on my PC play a few games then switch off and sit on my laptop but whenever i have done it its worked fine. I remember one time i put it into sleep mode then switched the power off at the socket (out of compulsive habit) and then i went out… came back and switched it on and it booted straight to desktop, that was odd.
